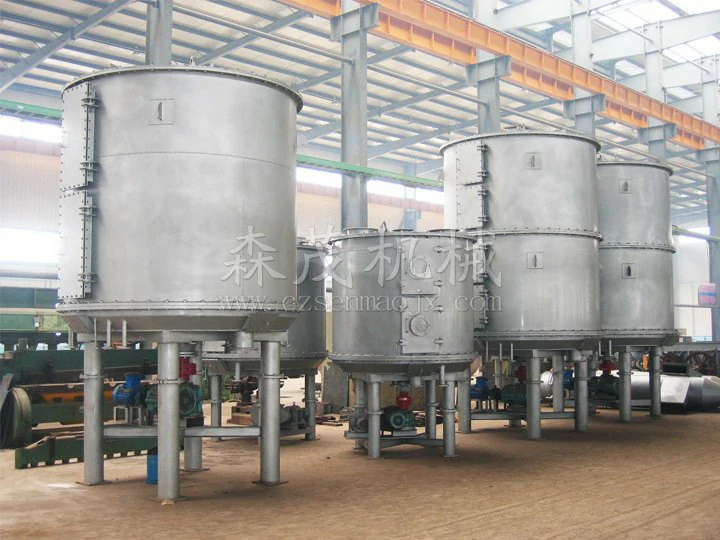

Product Introduction
The disc continuous dryer is an efficient conductive continuous drying equipment. Its unique structure and working principle determine its high thermal efficiency, low energy consumption, small footprint, simple configuration, convenient operation and control, and good operating environment. It is widely suitable for drying operations in industries such as chemical, pharmaceutical, pesticide, food, feed, and agricultural by-product processing. Highly praised in various industry usage practices. We currently produce and manufacture three types: atmospheric pressure, sealed, and vacuum, with four types: 1200, 1500, 2200, and 3000. A (carbon steel), B (stainless steel is uniformly distributed in the contact material), and C (based on B, stainless steel is added to the steam pipeline, main shaft, and support, and stainless steel is lined on the cylinder and cover). A series of products with three types of materials and a drying area of 4-180m2, totaling several hundred models, and can provide matching auxiliary equipment to meet the needs of users for drying various materials.
Working principle

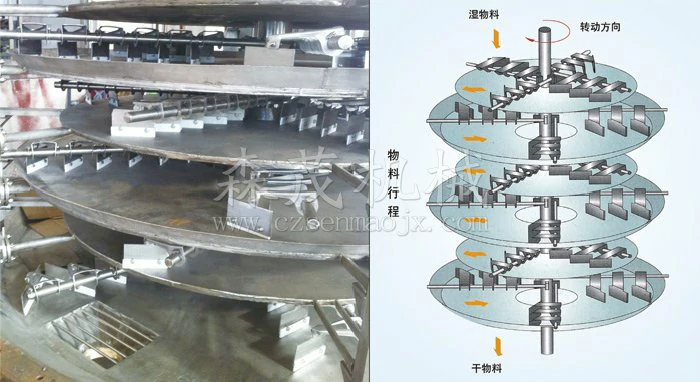

The wet material is continuously added to the first layer of drying plate on the upper part of the dryer by the feeder, and the rake arm with the rake blade rotates to make the rake arm rotate and continuously flip the material. The material flows through the surface of the drying plate along an exponential spiral, and the material on the small drying plate is transferred to the outer edge and falls to the outer edge of the large drying plate below. On the large drying plate, the material moves inward and falls into the following layer of small drying plate from the middle discharge port. The large and small drying plates are arranged alternately up and down, allowing materials to continuously flow through the entire dryer. The hollow drying plate is filled with heating medium in the form of saturated steam, hot water, and thermal oil. The heating medium enters from one end of the drying plate and exits from the other end. The dried material falls from the bottom drying plate to the bottom layer of the shell, and is then transported by the rake blades to the discharge port for discharge. Moisture escapes from the material and is discharged through a moisture discharge port located on the top cover. The moisture in the vacuum disc dryer is discharged through a vacuum pump port located on the top cover. The dry materials discharged from the bottom layer can be directly packaged. By adding auxiliary machines such as finned heaters, solvent recovery condensers, bag filters, dry material backmixing mechanisms, and induced draft fans, the production capacity of drying can be improved. Drying paste like and heat sensitive materials can facilitate solvent recovery, as well as pyrolysis and reaction operations.
Performance characteristics
（1） Easy regulation and strong applicability
By adjusting the thickness of the material layer, spindle speed, number of rake arms, rake blade type and size, the drying process can be improved.
Each layer of drying tray can be separately heated or cooled by entering hot or cold media, ensuring accurate and easy temperature control of the materials.
The residence time of materials can be accurately adjusted.
The material has a single flow direction, no backmixing phenomenon, uniform drying, stable quality, and no need for further mixing.
（2） Easy to operate and operate
The operation of starting and stopping the dryer is very simple.
After stopping the feeding, the material scraper can quickly empty the material inside the dryer.
Through the special large inspection door mirror, the equipment can be carefully cleaned and observed.
（3） Low energy consumption
The material layer is very thin, the spindle speed is low, and the power required for the material conveying system is low, resulting in low power consumption.
Drying through heat conduction has high thermal efficiency and low energy consumption.
（4） Good operating environment, recyclable solvent, and dust emission meets requirements
◎ Normal pressure type: due to the low air flow speed in the equipment and the low humidity distribution in the equipment, it is difficult for the dust to float to the top of the equipment, so there is almost no dust in the tail gas discharged from the top humidity outlet.
Sealed type: equipped with a solvent recovery device, it can conveniently recover organic solvents from the wet gas. The solvent recovery device is simple and has a high recovery rate. For flammable, explosive, toxic, and oxidizable materials, nitrogen can be used as a moisture carrying gas for closed-loop circulation, ensuring safe operation. Especially suitable for drying flammable, explosive, and toxic materials.
Vacuum type: A disc dryer operated in a vacuum state, especially suitable for drying heat-sensitive materials.
（5） Easy installation and small footprint
The dryer is delivered as a whole and transported as a whole. It only needs to be lifted in place, making installation and positioning very easy.
Due to the layered arrangement and vertical installation of the drying tray, the drying area is large and the floor area is also small.
Technical characteristics
（1） Drying disc
◎Design pressure: generally 0.4MPa, with an upper limit of up to 1.6MPa.
◎ Service pressure: generally ≤ 0.4MPa, with an upper limit of up to 1.6MPa.
◎ Heating medium: Steam, hot water, heat transfer oil, and drying pan can be heated with hot water at a temperature of 100 ℃, saturated steam or superheated steam of ≤ 0.4MPa can be used at a temperature of 100 ℃ to 150 ℃, heat transfer oil can be used at a temperature of 150 ℃ to 320 ℃, and methods such as electricity, heat transfer oil, and molten salt can be used for heating above 320 ℃.
（2） Material Transfer System
◎Spindle speed: 1-10 RPM, electromagnetic or variable frequency stepless speed regulation.
◎ Rake arms: There are 2 to 8 rake arms fixed on the main shaft on each layer of drying plate.
◎ Rake blade: It is hinged on the rake arm and can float up and down with the disc surface to maintain contact, with various forms available.
◎ Rolling: For materials that are prone to clumping and need to be crushed, adding rolling at appropriate locations can strengthen heat transfer and drying processes.
（3） The shell comes in three types: atmospheric pressure, sealed, and vacuum
◎ Atmospheric pressure type: cylindrical or octagonal prism type, with two types of structures: integral and split. The main pipeline for heating medium inlet and outlet can be inside the shell or outside the shell.
◎ Closed type: cylindrical shell, capable of withstanding an internal pressure of 5Kpa. The main pipes for heating medium inlet and outlet can be inside the shell or outside the shell.
◎Vacuum type: cylindrical shell with a design pressure of 0.1Mpa, and the main pipes for heating medium inlet and outlet are inside the shell.
（4） Air heater
It is generally used when the evaporation is large to enhance the drying efficiency.
Adapt to materials
Dry pyrolysis combustion cooling reaction sublimation
Organic chemical products, inorganic chemical products, pharmaceuticals, food, feed, fertilizers
|
specifications
|
outside diameter mm
|
height mm
|
drying area m2
|
power Kw
|
|
1200/4
|
Φ1850
|
2718
|
3.3
|
1
|
|
1200/6
|
3138
|
4.9
|
|
1200/8
|
3558
|
6.6
|
1.5
|
|
1200/10
|
3978
|
8.2
|
|
1200/12
|
4398
|
9.9
|
2.2
|
|
1500/6
|
Φ2100
|
3022
|
8.0
|
|
1500/8
|
3442
|
10.7
|
|
1500/10
|
3862
|
13.4
|
|
1500/12
|
4282
|
16.1
|
3.0
|
|
1500/14
|
4702
|
18.8
|
|
1500/16
|
5122
|
21.5
|
|
2200/6
|
Φ2900
|
3319
|
18.5
|
|
2200/8
|
3739
|
24.6
|
|
2200/10
|
4159
|
30.8
|
4.0
|
|
2200/12
|
4579
|
36.9
|
|
2200/14
|
4999
|
43.1
|
5.5
|
|
2200/16
|
5419
|
19.3
|
|
2200/18
|
5839
|
55.4
|
7.5
|
|
2200/20
|
6259
|
61.6
|
|
2200/22
|
6679
|
67.7
|
11
|
|
2200/24
|
7099
|
73.9
|
|
2200/26
|
7519
|
80.0
|
|
specifications
|
outside diameter mm
|
height mm
|
drying area m2
|
power Kw
|
|
2500/6
|
Φ3150
|
3319
|
26.3
|
4
|
|
2500/8
|
3739
|
35
|
|
2500/10
|
4159
|
43.8
|
5.5
|
|
2500/12
|
4579
|
52.5
|
|
2500/14
|
4999
|
61.3
|
7.5
|
|
2500/16
|
5419
|
70
|
|
2500/18
|
5839
|
78.8
|
11
|
|
2500/20
|
6259
|
87.5
|
|
2500/22
|
6679
|
96.3
|
|
2500/24
|
7099
|
105
|
13
|
|
2500/26
|
7519
|
113.8
|
|
3000/8
|
Φ3800
|
4050
|
48
|
11
|
|
3000/10
|
4650
|
60
|
|
3000/12
|
5250
|
72
|
|
3000/14
|
5850
|
84
|
|
3000/16
|
6450
|
96
|
|
3000/18
|
7050
|
108
|
13
|
|
3000/20
|
7650
|
120
|
|
3000/22
|
8250
|
132
|
|
3000/24
|
8850
|
144
|
|
3000/26
|
9450
|
156
|
15
|
|
3000/28
|
10050
|
168
|
