GZQ series vibrating fluidized bed dryer

Category: Drying equipment

Introduction: Working principleThe material enters the machine from the feed inlet, and under the action of vibration, it is thrown along the horizontal fluidized bed and continuously moves forward. After the hot air passes through the fluidized bed and exchanges h…

Contact

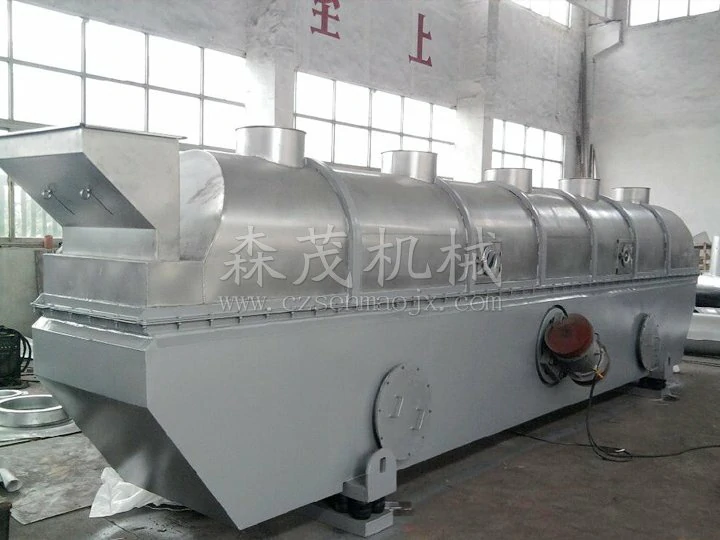

Details Photo Collection

Working principle

The material enters the machine from the feed inlet, and under the action of vibration, it is thrown along the horizontal fluidized bed and continuously moves forward. After the hot air passes through the fluidized bed and exchanges heat with the wet material, the wet air is removed by the cyclone separator and discharged by the exhaust air 1:3. The dry material is discharged from the discharge inlet.

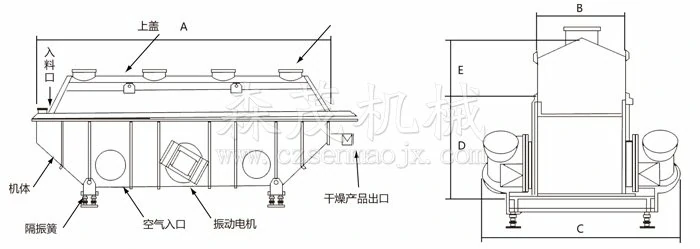

Structural diagram

振动流化床干燥机

Adapt to materials

Suitable for drying, cooling and other operations of powdered and granular materials in industries such as chemical, pharmaceutical, food, dehydrated vegetables, grains, minerals, etc. For example: citric acid, monosodium glutamate, borax, ammonium sulfate, compound fertilizer, pineapple, silk, soybean meal, distiller's grains, seeds, slag, sugar, etc.

Performance characteristics

◎The vibration source is driven by a vibration motor, with smooth operation, convenient maintenance, low noise, and long service life.
◎Homogeneous fluidization, without dead spaces or blowing through phenomena, can achieve uniform drying and cooling of the product.
◎Good adjustability and wide applicability. The thickness of the material layer, the speed of movement inside the machine, and the full amplitude change can be adjusted steplessly.
◎Small damage to the surface of the material. It can be used for drying fragile materials, and irregular material particles do not affect the working effect.
◎Adopting a fully enclosed structure, it effectively prevents cross infection between materials and air, and the working environment is clean.
◎ High mechanical efficiency and thermal efficiency, good energy saving effect, 30-60% energy saving than ordinary drying devices.

Technical specifications

Size/Model	A	B	C	D	E	F	weight(kg)
GZQ3×0.30	3000	300	1350	900	430	1650	1250
GZQ4.5×0.30	4500	300	1350	900	430	1650	1250
GZQ4.5×0.45	4500	450	1550	950	430	1700	1670
GZQ4.5×0.60	4500	600	1650	950	430	1700	1670
GZQ6×0.45	6000	450	1650	950	430	1700	2100
GZQ6×0.60	6000	600	1700	1000	500	1700	2410
GZQ6×0.75	6000	750	1850	1000	600	1850	2840
GZQ6×0.9	6000	900	2000	1000	600	1850	3160
GZQ7.5×0.60	7500	600	1850	1000	600	1850	3200
GZQ7.5×0.75	7500	750	2000	1000	600	1850	3600
GZQ7.5×0.9	7500	900	2100	1000	600	1850	4140
GZQ7.5×1.2	7500	1200	2500	1150	800	2050	5190

model	Fluidized bed area (M2)	inlet air temperature (^oC)	Air outlet temperature (^oC)	Water evaporation capacity (kg)	VIBRATION MOTOR
model	Fluidized bed area (M2)	inlet air temperature (^oC)	Air outlet temperature (^oC)	Water evaporation capacity (kg)	model	power Kw
GZQ3×0.30	0.9	70-140	40-70	20-35	ZDS31-6	0.8×2
GZQ4.5×0.30	1.35	70-140	40-70	35-50	ZDS31-6	0.8×2
GZQ4.5×0.45	2.025	70-140	40-70	50-70	ZDS32-6	1.1×2
GZQ4.5×0.60	2.7	70-140	40-70	70-90	ZDS32-6	1.1×2
GZQ6×0.45	2.7	70-140	40-70	80-100	ZDS41-6	1.5×2
GZQ6×0.60	3.6	70-140	40-70	100-130	ZDS41-6	1.5×2
GZQ6×0.75	4.5	70-140	40-70	120-140	ZDS42-6	2.2×2
GZQ6×0.9	5.4	70-140	40-70	140-170	ZDS42-6	2.2×2
GZQ7.5×0.60	4.5	70-140	40-70	130-150	ZDS42-6	2.2×2
GZQ7.5×0.75	5.625	70-140	40-70	150-180	ZDS51-6	3.0×2
GZQ7.5×0.9	6.75	70-140	40-70	160-210	ZDS51-6	3.0×2
GZQ7.5×1.2	9	70-140	40-70	200-260	ZDS51-6	3.0×2

★The above evaporation is the upper limit of evaporation.
