Category: Drying equipment

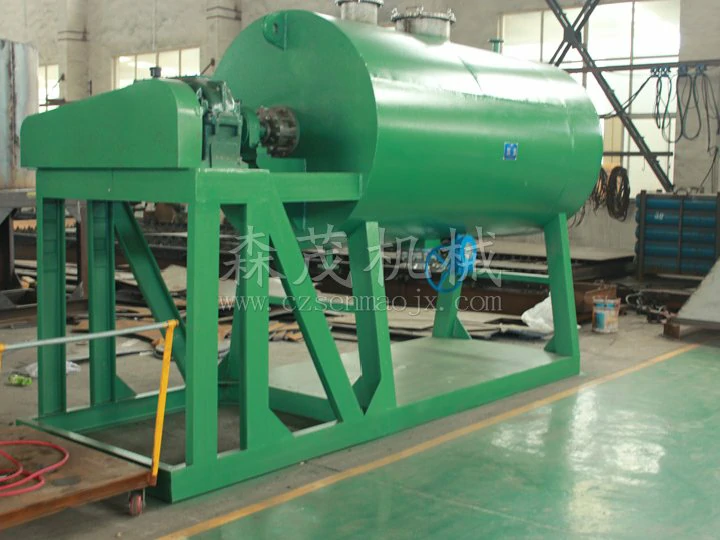

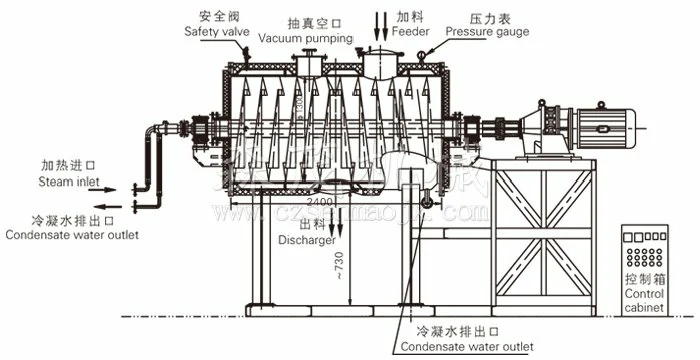

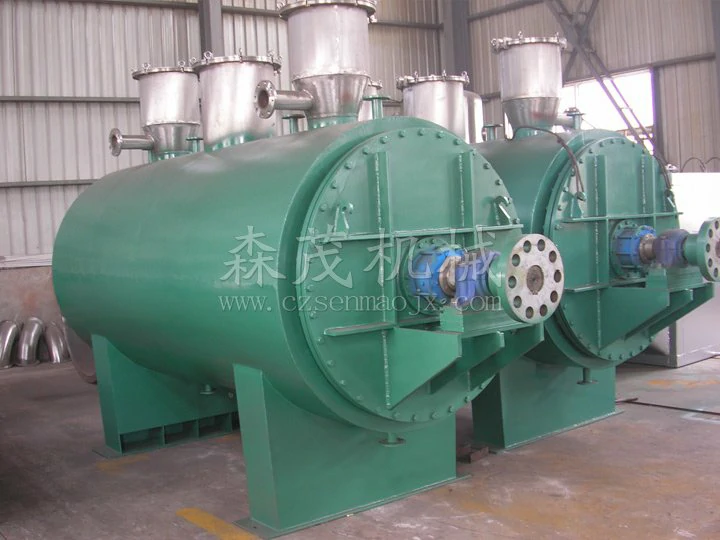

Introduction: Working principleThis machine is a novel horizontal intermittent vacuum drying equipment. Wet materials are evaporated through conduction, and a scraper stirrer is equipped to continuously remove the materials on the hot surface. The material is then …
| project | model | ||||||
| name | unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 |
| working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| heating area | m2 | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| stirring speed | rpm | 6-30 stepless speed regulation | |||||
| power | kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Design pressure of interlayer (hot water) | Mpa | ≤0.3 | |||||
| Vacuum degree inside the cylinder | Mpa | -0.09～0.096 | |||||
Note: The evaporation of moisture is related to the characteristics of materials and the temperature of hot air inlet and outlet. When the outlet temperature is 90oC, the water evaporation curve is shown in the above figure (for selection reference). As the product is constantly updated, relevant parameters are subject to change without prior notice.
