Category: Drying equipment
Introduction: Product IntroductionThe CT-C series hot air circulation oven is equipped with a low noise, high-temperature resistant axial flow fan, and an automatic temperature control system. The entire circulation system is fully enclosed, which increases the the…
◎The heating source includes steam, electric, far-infrared, and electric steam for users to choose from;
◎ Operating temperature: Steam heating at 50-140 ℃, up to 150 ℃;
Electricity consumption, far-infrared temperature 50-350 ℃;
Equipped with automatic control systems and computer control systems for users to choose from;
◎ Common steam pressure 0.02-0.8Mpa (0.2-8kg/m2);
◎ Equipped with electric heating, calculated as 15KW according to Type I, practical 5-8kw/h;
◎ Special requirements shall be explained during ordering;
◎ The price of non-standard ovens is negotiable;
◎ If the operating temperature is greater than 140 ℃ or less than 60 ℃, it should be indicated when ordering;

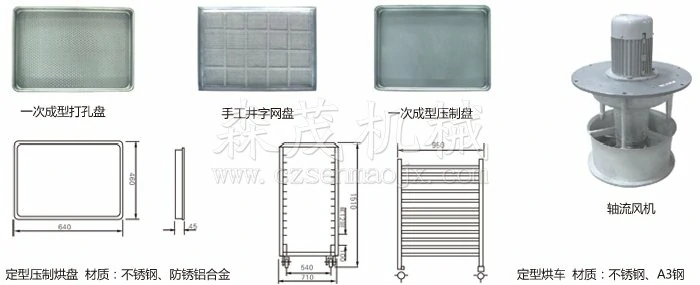

◎ The size of our factory's baking trucks and baking trays is unified and interchangeable;
◎ Oven size: 460 × six hundred and forty × 45(mm)。
| Industry standard models |
technical parameter Model specifications |
Each drying amount (kg) |
Allocated power (kw) |
Steam consumption (kg/h) |
Heat dissipation area (m2) |
Air volume (m3/h) |
Temperature difference between upper and lower parts (℃) |
Equipped with baking tray |

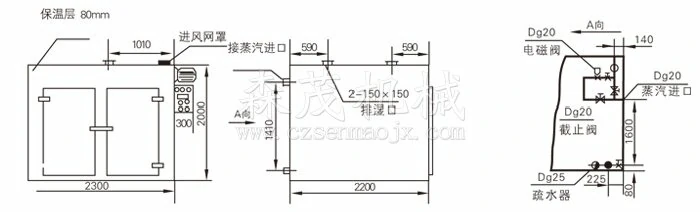

Overall dimensions Face width × depth × high |
Supporting drying truck | Equipment weight |
| RXH-14-B | CT-Ⅰ | 120 | 1.1 | 20 | 20 | 2800 | ±2 | 48 | 2430×1200×2375 | 2 | 1200 |
| RXH-27-B | CT-Ⅱ | 240 | 2.2 | 40 | 40 | 5200 | ±2 | 96 | 2430×2200×2433 | 4 | 1500 |
| RXH-41-B | CT-Ⅲ | 360 | 3 | 60 | 80 | 8000 | ±2 | 144 | 3430×2200×2620 | 6 | 2000 |
| RXH-54-B | CT-Ⅳ | 480 | 4 | 80 | 100 | 9800 | ±2 | 192 | 4460×2200×2620 | 8 | 2300 |
| RXH-5-C | CT-C-O | 25 | 0.45 | 5 | 5 | 3450 | ±2 | 16 | 1130×1100×1750 | 0 | 800 |
| RXH-7-C | CT-C-ⅠA | 50 | 0.45 | 10 | 10 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 | 1000 |
| RXH-14-C | CT-C-Ⅰ | 120 | 0.45 | 18 | 20 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 | 1500 |
| RXH-27-C | CT-C-Ⅱ | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 2300×2200×2000 | 4 | 1800 |
| RXH-27A-C | CT-C-ⅡA | 240 | 0.9 | 36 | 40 | 6900 | ±2 | 96 | 4460×1200×2290 | 4 | 1800 |
| RXH-41-C | CT-C-Ⅲ | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 3430×2200×2000 | 6 | 2200 |
| RXH-42A-C | CT-C-ⅢA | 360 | 1.35 | 54 | 80 | 10350 | ±2 | 144 | 2300×3200×2000 | 6 | 2200 |
| RXH-54-C | CT-C-Ⅳ | 480 | 1.8 | 72 | 100 | 13800 | ±2 | 192 | 4460×2200×2290 | 8 | 2800 |
| RXH-25-A | Efficient high temperature far infrared sterilization oven power matching is carried out according to temperature requirements | 1200×1000×1600 | 1 | 1200 | |||||||
Suitable for heating, solidification, drying and dehydration of materials and products in industries such as pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, light industry, heavy industry, etc. Such as raw materials, raw medicines, traditional Chinese medicine slices, extracts, powders, granules, granules, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits and melons, sausages, plastic resins, electrical components, baking paints, etc.
