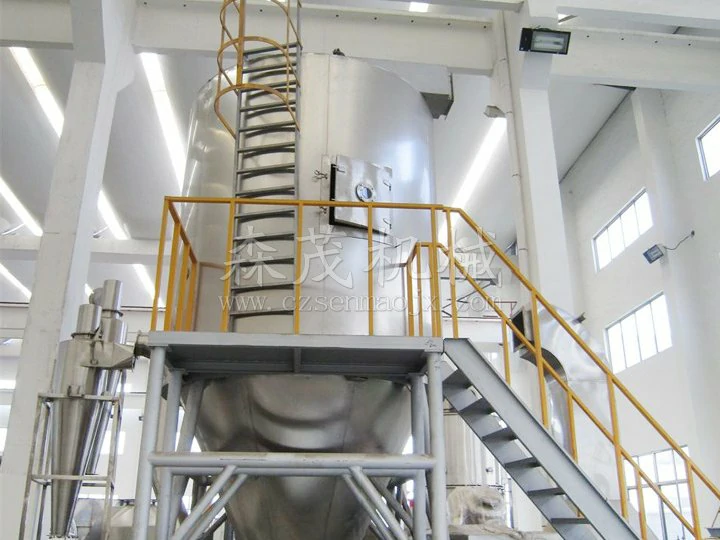

ZLPG series Chinese medicine extract spray dryer

Product Introduction

The machine adopts a fully enclosed form, with all components made of stainless steel and equipped with a three-level purification device. The filtered air meets the requirement of 100000 levels. The cylinder and top are equipped with a cold wall device to ensure a wall temperature of less than 80 ℃. The drying tower is equipped with an air brush scanning device. After being dried by this machine, the traditional Chinese medicine extract powder will not experience coking and deterioration, greatly increasing the powder collection rate (over 95%), and will not produce mixing and wall sticking phenomena.

Working principle

The high-speed centrifugal spray device for Chinese herbal extracts is the application of centrifugal spray drying technology in the drying of specific materials. It is also a drying device that uses high-speed centrifugal atomizers to disperse materials into mist, fully contact with hot air, complete instant drying, and form powder products.

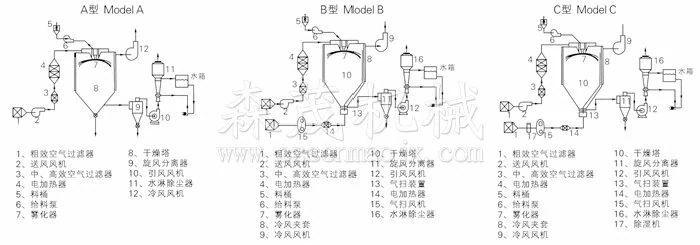

Structural diagram

Performance characteristics

◎The tower body has a cold air jacket;
◎The tower body is equipped with an automatic rapping device;
◎The tower body and pipeline are equipped with quick opening cleaning holes and sewage holes;
◎It can be equipped with an automatic control constant temperature feeding tank;
◎It can be equipped with manual high-pressure washing tower and accompanying accessories;
◎The part in contact with the material is made of stainless steel material; (or made entirely of stainless steel);
◎ The material collection adopts a two-stage cyclone dust removal device, or a one-stage cyclone dust removal device
◎Cyclone dust collector and wet dust collector;
◎ Automatic control and continuous device for inlet air temperature.
◎It can be equipped with an air scanning device.

Technical specifications

model		ZLPG-15	ZLPG-20	ZLPG-25	ZLPG-32	ZLPG-38	ZLPG-40	ZLPG-47	ZLPG-52	ZLPG-58
Moisture evaporation		5	10	25	50	80	100	150	200	300
Material liquid processing capacity		6-7	12-14	25-34	50-68	80-108	100-135	150-203	200-270	300-406
Finished product output		1-2	2-4	4.8-7.2	9.2-14	14.8-22.4	18.4-28	28-42	36.8-56.4	55-85
Solid content of wet materials		18-25
Finished product moisture content		3-5
electric power		36	45	63	99	132	153	204	246	330
heat source		Steam+Electricity
Product Collection Method And primary collection efficiency		One or two point collection: collecting small wheeled vehicles at once ≥ 95%
Automatic control instrument		Automatic control and adjustment of temperature and pressure, interlocking alarm
inlet air temperature		150-200
Air outlet temperature		80-100
Overall dimensions (mm)	long	5000	5500	7000	8000	9800	11000	12200	14100	15000
	wide	3000	3500	4000	5000	5700	6200	7000	7800	9000
	tall	4500	4600	5200	6500	7600	8100	9000	9850	11100

Note: ★ The actual external dimensions can be determined based on the customer's actual situation, and the above dimensions are for reference only.
★ The above evaporation is the upper limit of evaporation.
