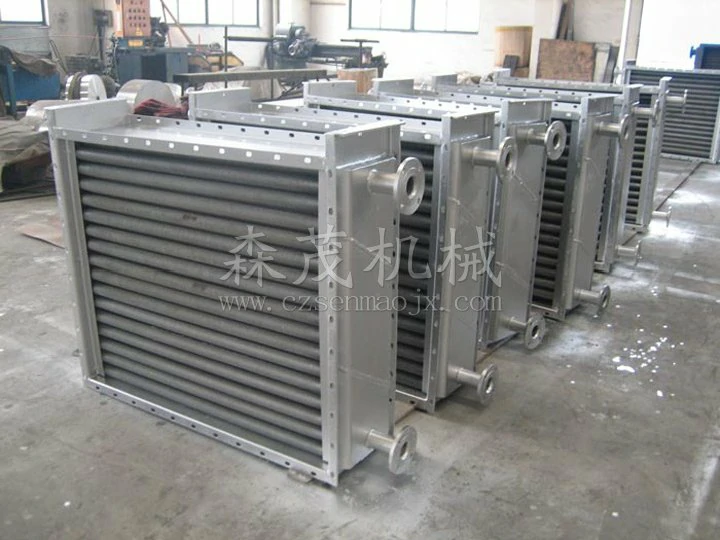

SRQ series heat sink

Product Introduction

The spiral finned air heat exchanger produced by our company, also known as radiator or heat dissipation pipe, is the main equipment in the heat exchange device that uses cold and hot media for cooling or heating air.

Adapt to materials

Radiators are used for projects such as hot air heating, air conditioning, cooling, dehumidification, and drying. They are suitable for heating air with steam or high-temperature water, and cooling air with saline or low-temperature water. It is widely used in air conditioning systems such as industrial and mining enterprises, light industry, papermaking, chemical industry, national defense, textiles, electricity, dairy products, ceramics, hospitals, theaters, etc. Its structure is composed of spiral finned tubes, which are controlled into a series of products using spiral finned tubes. Various models have different sizes and specifications.

Ordering instructions

It can be used with various drying equipment, with a variety of specifications and materials, including aluminum alloy, stainless steel, A3 steel surface galvanizing, steel aluminum composite, copper, and steel pipe aluminum wound sheet. In addition, radiators can be used separately for indoor and warehouse heating and dehumidification, and our company can design and manufacture them for users.

When ordering, it is necessary to specify the product model, name, pipe length, number of pipes, and number of rows.

When placing an order, if there are special specifications and requirements that need to be discussed separately, various drying equipment can be used with a variety of specifications. The materials used include aluminum alloy, stainless steel, A3 steel surface galvanizing, steel aluminum composite, copper, and steel pipe aluminum wound sheet. In addition, radiators can be used separately for indoor and warehouse heating and dehumidification, and our company can design and manufacture them for users.

Fin specifications when the heat source is hot water steam or thermal oil

	stainless steel	carbon steel	aluminium
Pipe diameter specifications	Φ18×2	Φ19×2	-
Outer diameter of fin	Φ38	Φ39	-
fin thickness	0.24	-	0.4
Heat exchange area coefficient		0.64

Finned tube specifications when the heat source is hot air

Pipe diameter specifications	Φ63×3
Outer diameter of fin	Φ103
fin thickness	1.5
Heat exchange area coefficient	1.5
