Category: Dust removal equipment

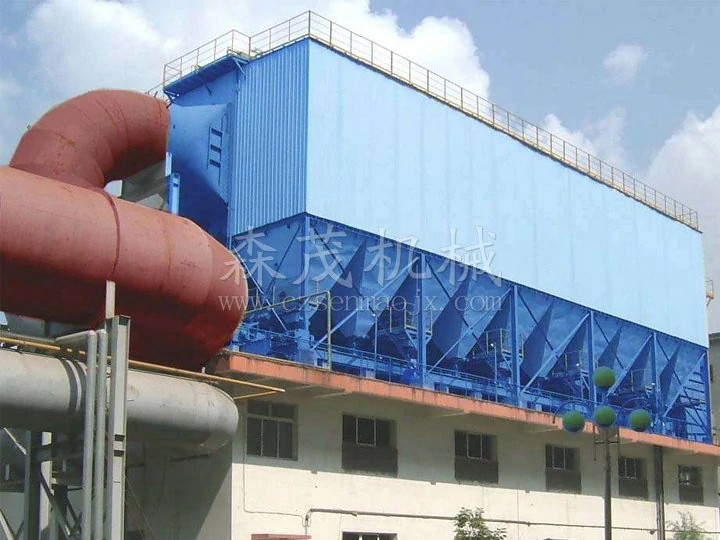

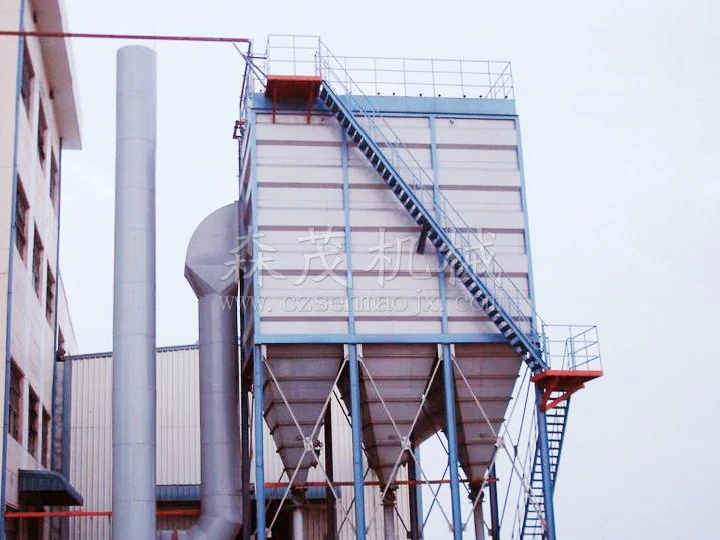

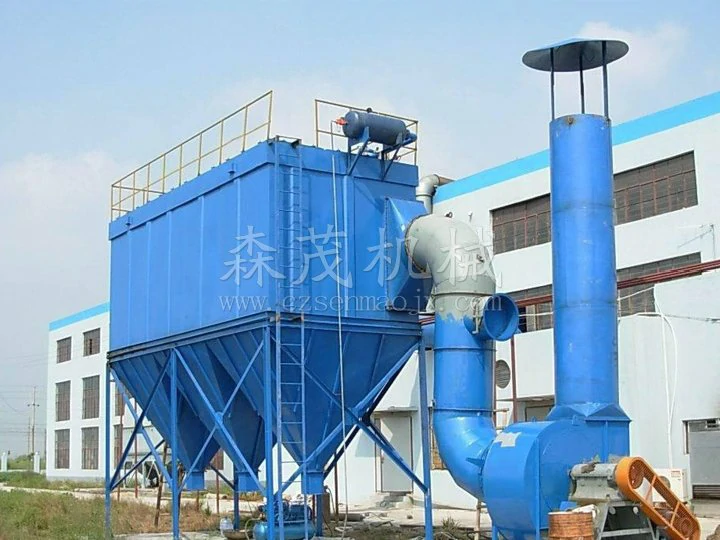

Introduction: Product IntroductionThe MF II square pulse bag filter is an improved and modified version of the MF I type.Performance characteristicsIt not only has the characteristics of high dust removal efficiency, large processing air volume, stable performance,…
| parameter | model | ||||||
| MF48 | MF60 | MF72 | MF84 | MF96 | MF108 | MF120 | |
| filter area（m2） | 36.2 | 45.2 | 54.3 | 63.3 | 72.4 | 81.4 | 90.5 |
| Number of filter bags (piece) | 48 | 60 | 72 | 84 | 96 | 108 | 120 |
| Filtered air volume (m3/h) | 6510-8680 | 8130-10840 | 9770-13000 | 11400-1520 | 13000-17370 | 14650-19530 | 16290-21700 |
| Number of solenoid valves (piece) | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Power (kW) | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 | 2.2 |
| Filter bag specification (mm) | 120×2000 | ||||||
| Filtering wind speed (m/min) | 3-4 | ||||||
| Air leakage rate (%) | ≤5 | ||||||
| Injection pressure (Mpa) | ＞0.4-0.6 | ||||||
| Equipment resistance (Pa) | ＜1200 | ||||||
| Dust removal efficiency (%) | ≥99.9（Select suitable filter material according to dust characteristics） | ||||||
| parameter | model | ||||||
| MF48 | MF60 | MF72 | MF84 | MF96 | MF108 | MF120 | |
| A | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 | 3530 |
| B | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 | 3287 |
| C | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 | 2552 |
| D | 1160 | 2260 | 1160 | 1160 | 1160 | 1160 | 1160 |
| E | 1350 | 1650 | 1950 | 2250 | 1350 | 2850 | 3150 |
| F | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| G | 635 | 635 | 635 | 635 | 635 | 635 | 635 |
| H | 325 | 475 | 625 | 775 | 925 | 1075 | 1225 |
| I | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 | 1586 |
| J | 790 | 790 | 790 | 790 | 850 | 850 | 850 |
| K | 824 | 824 | 824 | 824 | 824 | 824 | 824 |
| M×N | 400×500 | 500×500 | 600×500 | 700×600 | 700×600 | 800×600 | 800×600 |
| P×Q | 432×530 | 530×530 | 630×530 | 728×630 | 728×630 | 832×630 | 832×630 |
| R×S | 1050×1050 | 1350×1050 | 1650×1050 | 1950×1050 | 2250×1050 | 2250×1050 | 2850×1050 |
