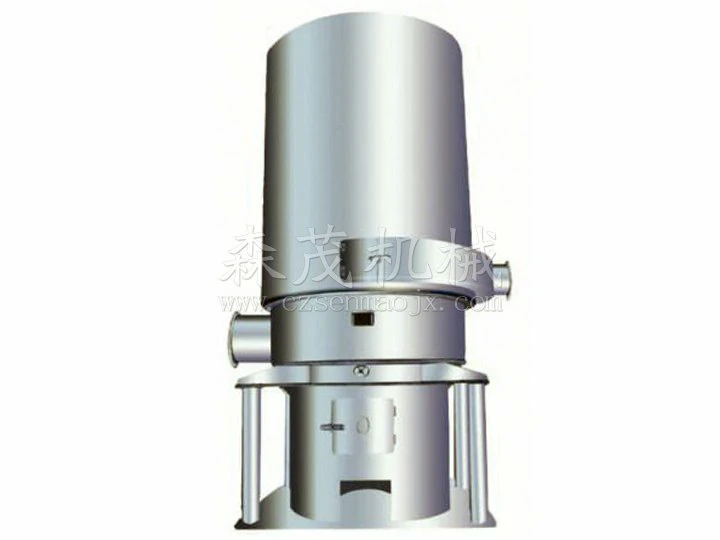

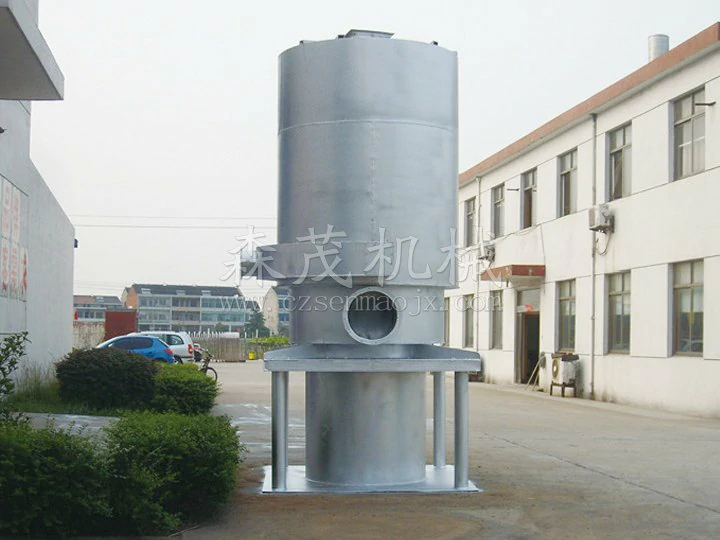

JRF series coal-fired hot air stove

Working principle

This furnace integrates combustion and heat exchange as a new type of indirect heating technology, which exchanges heat in high-temperature parts of the furnace body. Smoke and air flow in their respective ways, heating is environmentally friendly, with high thermal efficiency (up to 60-75%), fast heating, small size, convenient installation, reliable use, and low price.

Performance characteristics

High temperature resistance measures have been taken, which greatly extends its lifespan compared to tubular hot air furnaces. The flue gas longitudinal flushing heat dissipation fins and negative pressure smoke exhaust methods have been adopted, and the heat exchange area does not accumulate dust and does not need to be cleaned, resulting in stable thermal performance. Various types of coal or firewood can be used as fuel and equipped with a secondary air intake device for complete combustion.

Adapt to materials

This furnace is a universal hot air device that is used in conjunction with various drying equipment for materials. Widely used for heating and dehumidifying agricultural products such as grains, seeds, feed, fruits, dehydrated vegetables, Xiangru, agaric, tremella, tea, tobacco, food, pharmaceuticals, chemical raw materials, and light and heavy industrial products. It can also be used for heating various facilities and dehumidifying warehouses.

Technical specifications

Name/Model	JRF-15	JRF-20	JRF-30	JRF-40	JRF-60	JRF-80	JRF-100
Inner cylinder diameter	760	760	1170	1170	1470	1670	1870
Outer cylinder diameter	1280	1280	1840	1840	2200	2460	2700
Height	3500	3500	4260	4760	4810	5110	5310
Total equipment quantity	3.15T	3.65T	6.8T	7.5T	9.8T	11.7T	13.5T
Hot air outlet diameter	300	300	500	500	500	600	600
Hot air outlet height	1585	1585	1670	1670	1670	1770	1770
Flue gas outlet diameter	250	250	250	250	250	300	320
Smoke outlet height	2050	2050	2220	2220	2220	2385	2385
Model of ox horn elbow	XZD/G Φ578					XZD/G Φ810
Hourly coal consumption	43kg	57kg	85kg	115kg	170kg	230kg	286kg
Combustion value of coal	5000kcal/h
thermal efficiency	70-78%					75-80%
Model of smoke exhaust fan	Y5-47-3.15C -1.5KW	Y5-47-4C -2.2KW	Y5-47-4C -3KW		Y5-47-4C -4KW	Y5-47-5C -7.5KW	Y5-47-5C -7.5KW

Attention

The environmental reference temperature standard is 18 ℃± 2 ℃, and the calorific value of coal is calculated at 5000Kcal/kg.
The hot air temperature in the table is determined based on the output air volume. The hot air temperature of the JRF4 type hot air stove can reach over 200 ℃, while the JRF5 JRF6 type hot air temperature can reach over 300 ℃ (special manufacturing can reach over 500 ℃). Users can adjust according to their needs.
The height of the hot air stove smoke window configuration: 3-5 meters for JRF4 models, 5-8 meters for JRF and JRF6 models.
The corresponding positions of the external dimensions in the table are shown in the installation diagram of the hot air stove.
The refractory layer on the inner wall of the lower part of the furnace starts from the grate, and its height is 0.5 meters for JRF4-4 type, which can be installed on site.
The JRF6 type is a chain grate combustion device.
