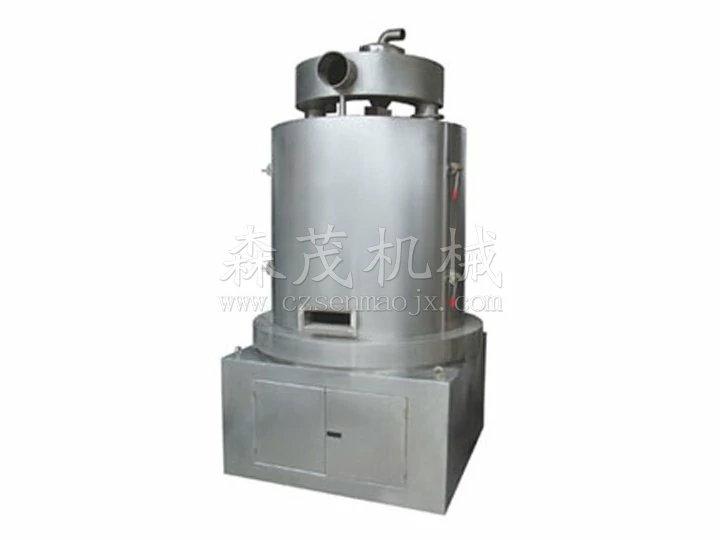

LZG series spiral vibration dryer

Product Overview

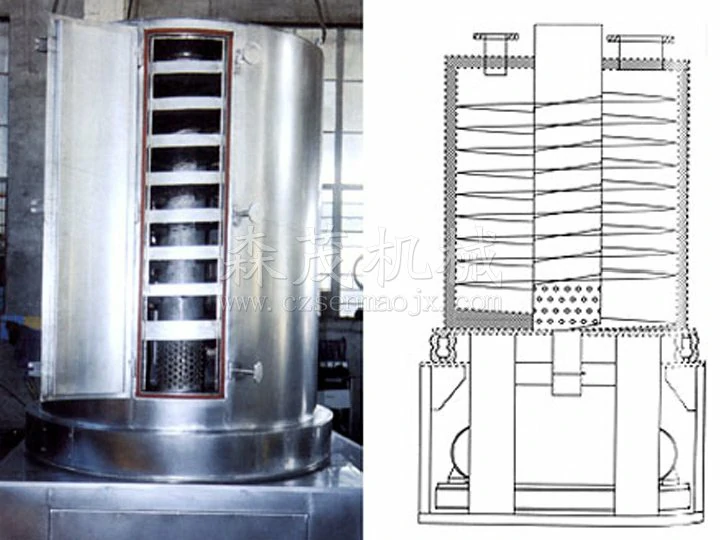

The wet material enters the spiral bed from the top feeding port, and under the action of circumferential excitation force and gravity, the material jumps along the spiral bed from top to bottom until the bottom layer; At the same time, clean hot air enters from the bottom of the spiral bed, undergoes sufficient heat and mass transfer with the materials distributed on the bed, and is discharged through the top moisture discharge port. Thus, the material achieves the purpose of drying.

Product Application

This drying equipment product is mainly suitable for drying traditional Chinese medicine pills; It can also be applied to the drying of granular, short strip, and spherical materials in industries such as chemical, chemical, food, plastic, building materials, and feed.

Main features

The hot air passes through the material layer multiple times and flows in reverse with the material, allowing for sufficient heat exchange and high thermal efficiency.
Compact structure and small footprint.
The retention time of materials in the bed can be adjusted, making it easy to operate.
When the material moves in a circular motion along the spiral bed from bottom to top, it also jumps, thereby increasing the contact between the material and the hot air and enhancing the drying effect.
Continuous feeding and discharging is suitable for assembly line operation and easily meets the "GMP" standard, which can replace traditional box drying.
There is basically no damage to the surface and shape of the material, which not only ensures the roundness of the pills, but also greatly reduces the crushing rate of the pills.

Technical specifications

model	LZG-1.0	LZG-1.2	LZG-1.4	LZG-1.6	LZG-1.8
diameter (mm)	1000	1200	1400	1600	1800
Vibration motor power (kw)	2×1.1	2×1.1	2×1.5	2×1.5	2×2.2
Overall dimensions(m)	1.2×1.2×2.7	1.4×1.4×2.7	1.6×1.6×3.3	1.8×1.8×3.3	2.0×2.0×3.3
weight (kg)	1400	1680	2800	3100	3800
inlet air temperature (℃)	60-200	60-200	60-200	60-200	60-200
Air volume（m3/h)	1487	2380	3721	4462	5930
