Category: Drying equipment

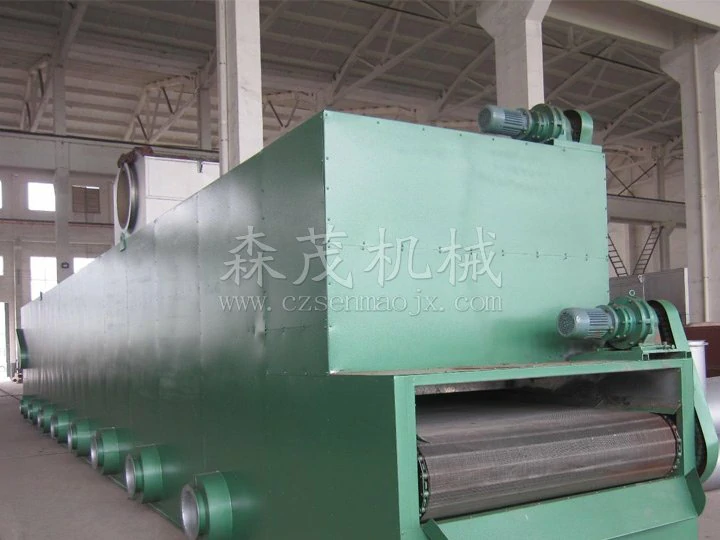

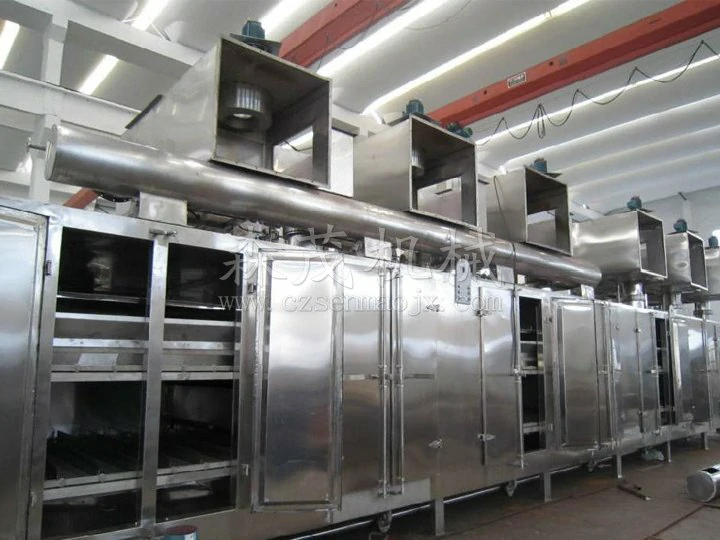

Introduction: Product IntroductionThe DW series multi-layer belt dryer is a continuous drying equipment used in batch production, used for drying sheet, strip, and granular materials with good breathability. It is particularly suitable for materials with high moist…
| model | DW3-1.2-8 | DW3-1.2-10 | DW3-1.6-8 | DW3-1.6-10 | DW3-2-8 | DW3-2-8 |
| Number of units | 4×3 | 5×3 | 4×3 | 5×3 | 4×3 | 5×3 |
| bandwidth(m) | 1.2 | 1.6 | 2 | |||
| Drying section length(m) | 8×3 | 10×3 | 8×3 | 10×3 | 8×3 | 10×3 |
| Paving thickness(mm) | 10-80 | |||||
| Operating temperature(℃) | 50-140 | |||||
| Steam pressure(Mpa) | 0.2-0.8 | |||||
| Steam consumption (kg/h) | 360-600 | 420-720 | 450-840 | 480-960 | 480-960 | 630-1350 |
| Heat Exchange Area(m2) | 816 | 1020 | 1056 | 1320 | 1344 | 1680 |
| dry strength kg water/h | 150-450 | 220-550 | 240-600 | 280-750 | 280-750 | 350-900 |
| Number of fans | 14 | 17 | 14 | 17 | 14 | 17 |
| Total internal power(kw) | 30.8 | 37.4 | 42 | 51 | 56 | 68 |
| Total power of equipment(kw) | 35.3 | 41.9 | 46.5 | 55.5 | 60.5 | 72.5 |
| Overall dimensions（L×W×H） | 9.77×2.2×4.5 | 11.77×2.2×4.5 | 9.77×2.6×4.7 | 11.77×2.6×4.7 | 9.77×3.06×4.9 | 11.77×3.06×4.9 |
| Total weight kg | 4800×3 | 5780×3 | 5400×3 | 6550×3 | 6350×3 | 7800×3 |
Note: The evaporation amount shown in the figure depends on the drying temperature of the material, the thickness of the material, and the residence time.
