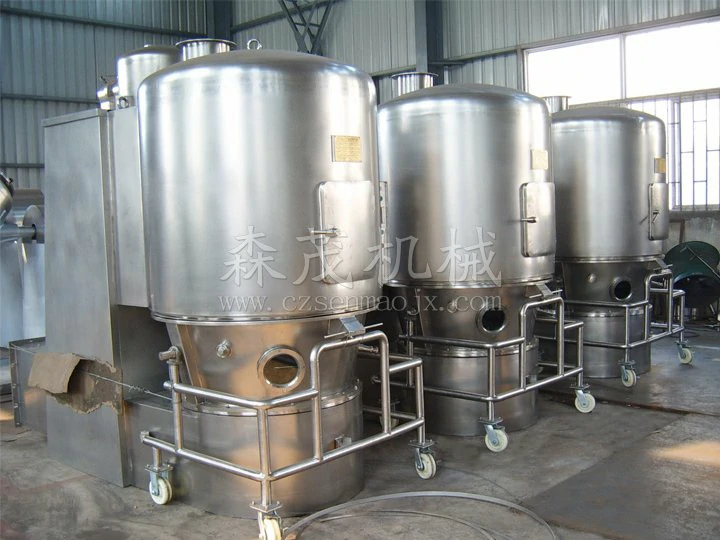

Category: Drying equipment

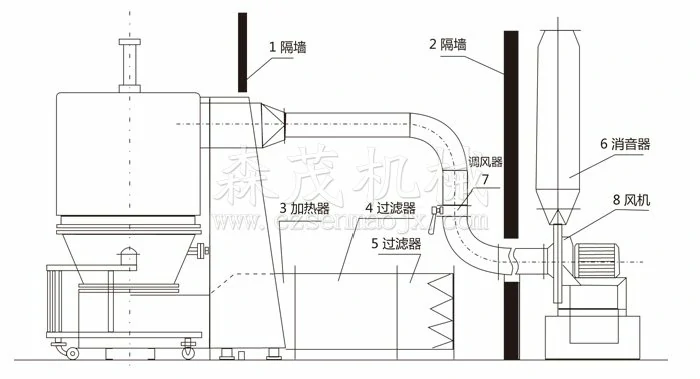

Introduction: Working principleAfter being heated and purified, the air is introduced from the bottom by an induced draft fan and passes through the mesh plate of the hopper. In the studio, fluidization is formed through stirring and negative pressure, and the wate…
| project | model | ||||||
| Feeding(kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 |
| fan power(kw) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 45 |
| stirring power(kw) | 0.55 | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | 2.2 |
| stirring speed(rpm) | 8～11 | ||||||
| Steam consumption(kg/h) | 141 | 170 | 170 | 240 | 282 | 366 | 451 |
| TIME(min) | 15-30（Revised according to material characteristics） | ||||||
| Host height | 2700 | 2900 | 2900 | 2900 | 2900 | 3300 | 3500 |
