Category: Screening equipment

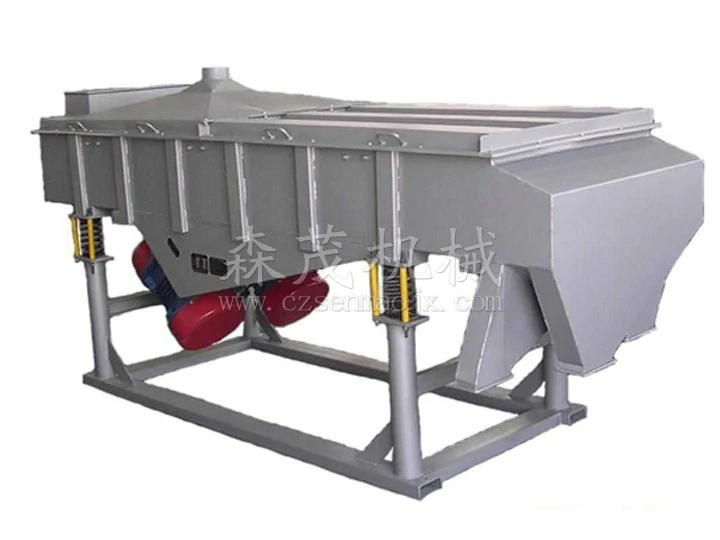

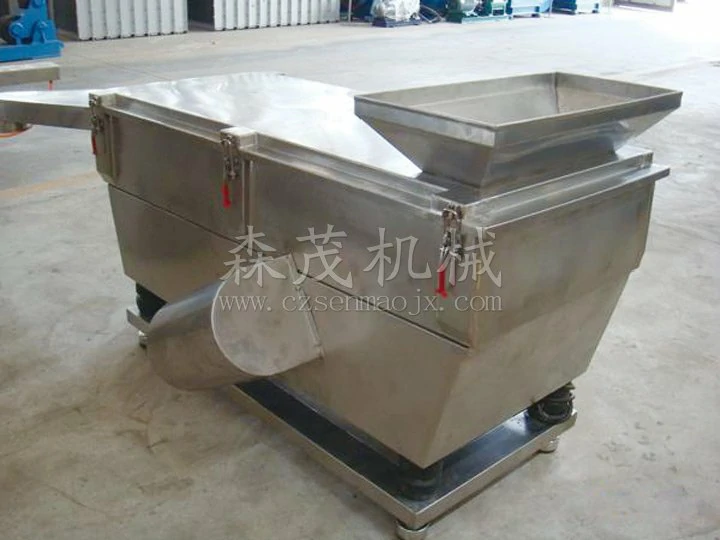

Introduction: SummaryThis machine is composed of three major components: the inlet and outlet screen box, the vibration source, and the shock absorber. The machine base is connected to the screen box with 4-6 sets of soft rubber shock absorbers fixed up and down. W…
| model |
production capacity （kg/h） |
meshes (mesh) |
power (kw/h) |
Vibration frequency (r/min) |
excitation force (kN) |
Upper exit height | Middle outlet height | Lower exit height |
Overall dimensions (L×W×H) |
net weight (kg) |
| FS-0.5M2-X | 450 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 800 | 680 | 500 |
1300×770 ×1060 |
220 |
| FS-0.7M2-X | 650 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1700×680 ×1100 |
280 |
| FS-0.8M2-X | 750 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 |
1600×830 ×1150 |
320 |
| FS-1.2M2-X | 1100 | 2-150 | 0.2×2 | 960 | 0-5×2 | 880 | 760 | 520 |
1900×980 ×1220 |
450 |
