Category: Crushing equipment
Introduction: Features and UsesThis machine (set) is suitable for crushing brittle materials in industries such as pharmaceuticals, chemicals, food, pesticides, etc. It is a new generation of crushing equipment that integrates crushing and dust collection, and has …
| model | unit | 20B/20B unit | 30B/30B unit | 40B/40B unit | 60B/60B unit |
| production capacity | kg/h | 60-150 | 100-300 | 160-800 | 500-1500 |
| Spindle speed | r/min | 4500 | 3800 | 3400 | 2800 |
| Feed particle size | mm | 6 | 10 | 12 | 15 |
| mesh | mesh | 60-150 | 60-120 | 60-120 | 60-120 |
| Crushing motor power | kw | 4 | 5.5 | 11 | 15 |
| Vacuum fan power | kw | 1.5 | 1.5 | 1.5 | 2.2 |
| weight | kg | 250 | 320 | 550 | 680 |
| Overall dimensions（L×W×H） | mm | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
| External dimensions (unit)（L×W×H） | mm | 1100×600×1650 | 1200×650×1650 | 1350×700×1700 | 1550×1000×1750 |
Previous: CH series slot mixer

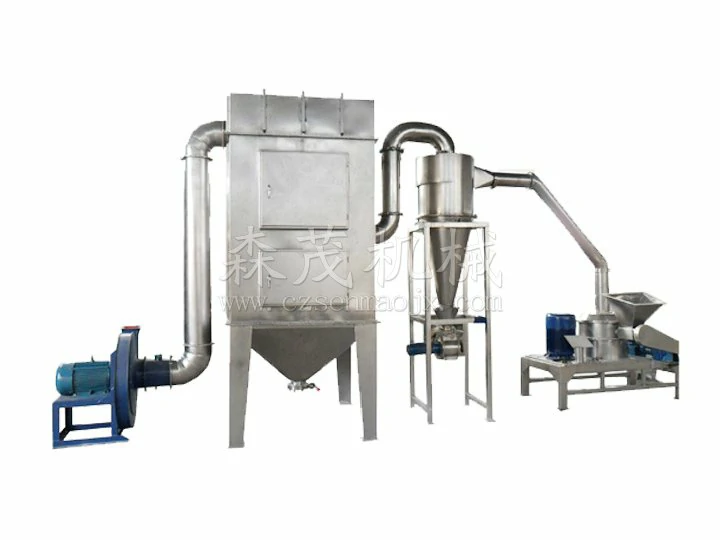

Next: WFJ series micro crusher
