Category: Hybrid Equipment

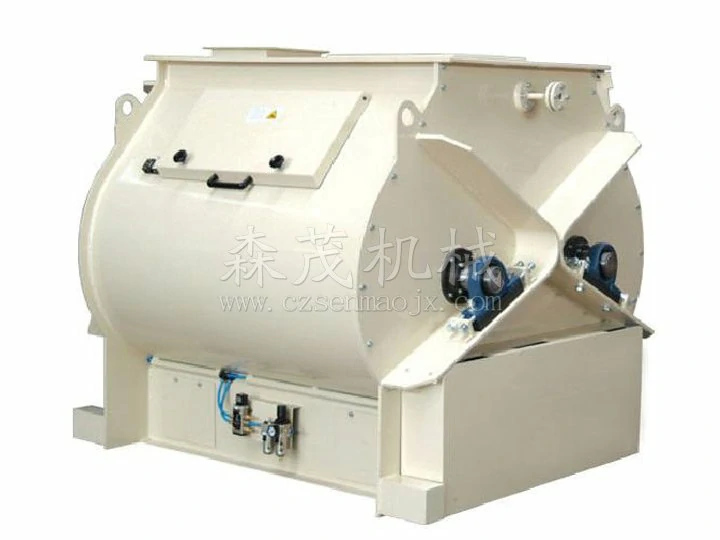

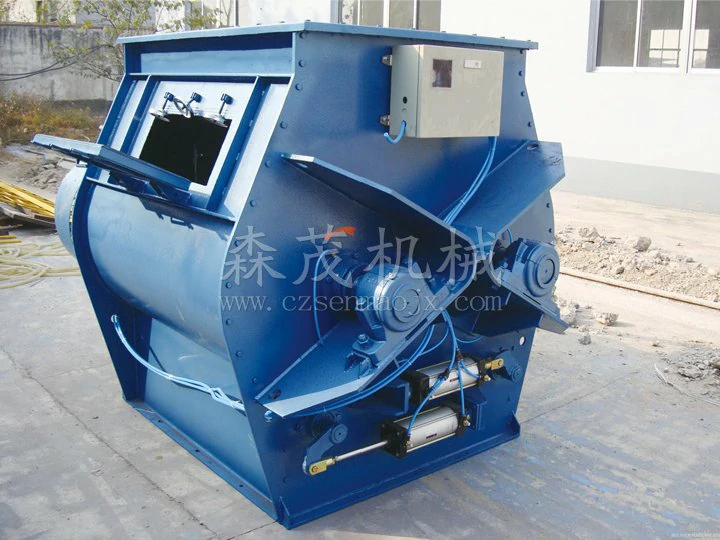

Introduction: working principleThis series of mixers is characterized by strong and efficient mixing, with two stirrers in the horizontal cylinder rotating in opposite directions at equal speeds. The specially arranged blades ensure the radial, circumferential, and…
| Model specifications | WZ-0.05 | WZ-0.1 | WZ-0.3 | WZ-0.5 | WZ-1 | WZ-2 | WZ-3 | WZ-4 | WZ-6 |
| Primary mixing kg | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
| Installed power kw | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 | 30-37 |
| Equipment weight kg | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6200 |
Previous: WLDH series horizontal screw belt mixer
Next: CH series slot mixer
