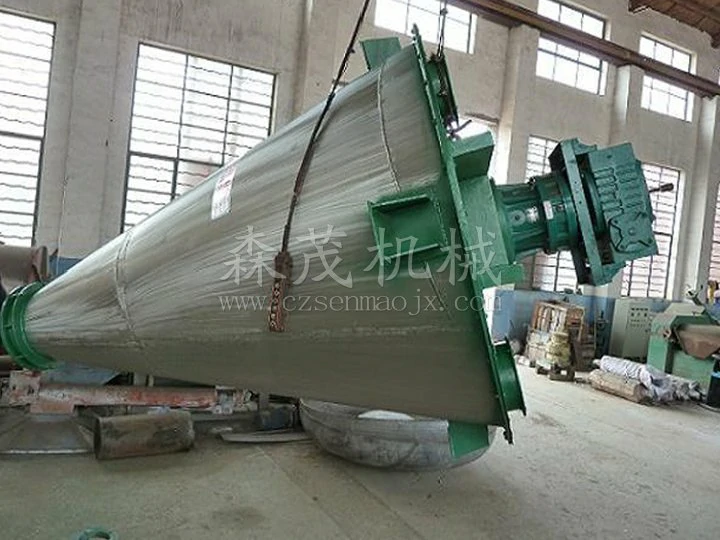

DSH series double helix conical mixer

Category: Hybrid Equipment

Introduction: Product OverviewThe composite motion of the material inside the cone is caused by the rotation of the spiral, which mainly produces four forms of motion:1. The spiral rotates along the wall, causing the material to move in a circular motion along the …

Contact

Details Photo Collection

Product Overview

The composite motion of the material inside the cone is caused by the rotation of the spiral, which mainly produces four forms of motion:

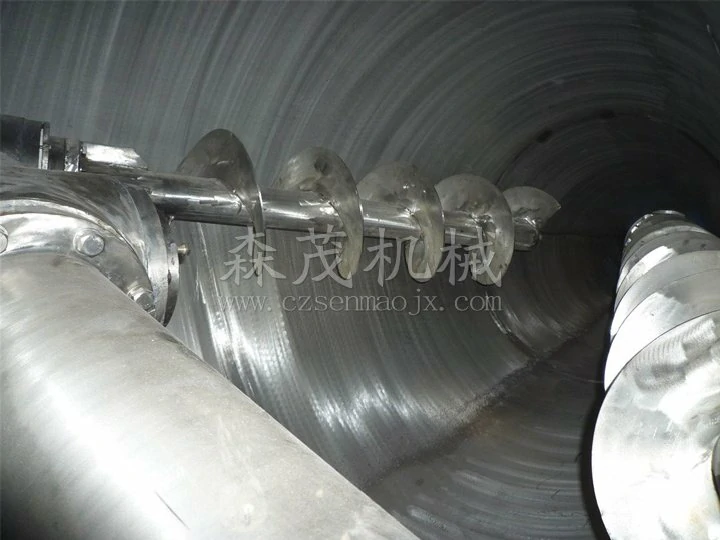

1. The spiral rotates along the wall, causing the material to move in a circular motion along the conical wall;

2. Spiral rotation causes the material to rise along the spiral from the bottom of the cone;

3. The combined motion of the spiral's rotation and rotation causes a portion of the material to be absorbed into the spiral cylindrical surface while being subjected to the centrifugal force of the spiral's rotation, causing a portion of the material inside the spiral cylindrical surface to be radially discharged into the cone;

4. The rising material descends under its own gravity. The four movements generate convection, shear, and diffusion in the mixer, achieving the goal of rapid and uniform mixing.

Product Features

It can be equipped with flying knives and spray atomization assembly to meet special process requirements.

The discharge valve has two modes: manual and pneumatic.

Special materials can increase the power of the motor (heavy-duty).

Product Application

Applied in chemical, pharmaceutical, pesticide, dye, petroleum, metallurgy, building materials, and other powder to powder (solid solid), powder to liquid (solid liquid), liquid to liquid (liquid liquid) mixing, reaction, drying, and cooling.

Technical specifications

model	unit	DSH0.3	DSH0.5	DSH1	DSH2	DSH4	DSH6	DSH10
Full volume	（m³）	0.3	0.5	1	2	4	6	10
load factor	0.4-0.6
Particle size of mixture	（um）40-3000
working conditions	Normal temperature, normal pressure, dust sealing
Per production	（kg）	180	300	600	1200	2400	3600	6000
power	(kw)	2.2	2.2	5.5	5.5	11	20.7	30.7
mixing time	(min)4-10（Special materials to be determined by testing）
Overall weight	(kg)	500	1000	1200	1500	2800	3500	4500
