Category: Granulation equipment
Introduction: application area◎ Drug granulation and coating◎Granulation: Tablet granules, granules, capsule granules.◎Coating: granules, pill protective layer, color preparation, sustained release, film, enteric coating.◎ Food granulation and coating◎Sugar, c…

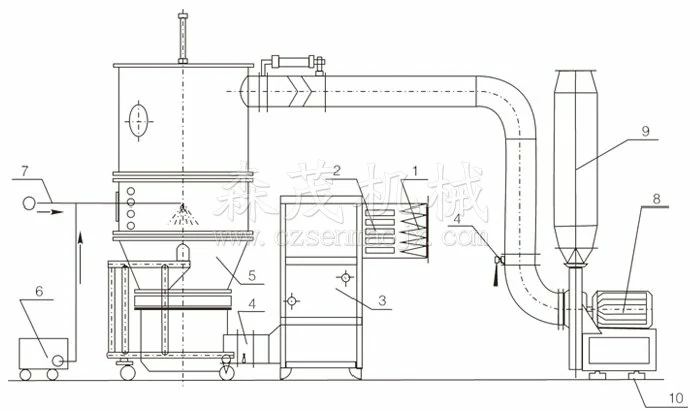

1. Medium efficiency filter 2, sub high efficiency filter 3, heater 4, regulating valve 5, fluidized bed 6, infusion pump 7, compressed air 8, induced draft fan 9, muffler 10, shock absorber
| specifications | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
| capacity | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
| Processing capacity | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
| fan power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
| Steam consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
| Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
| noise | （Fan isolation installation）≤75 | |||||||||||
| Overall dimensions |
1.0 ×0.55 ×1.8 |
1.2 ×0.6 ×2.1 |
1.25 ×0.9 ×2.1 |
1.6 ×0.9 ×2.3 |
1.65 ×1.1 ×2.4 |
1.85 ×1.25 ×3 |
1.85 ×1.25 ×3 |
2.2 ×1.65 ×3.1 |
2.27 ×1.72 ×3.1 |
2.34 ×1.9 ×3.5 |
2.8 ×1.9 ×3.8 |
3 ×2.55 ×4.2 |
Note: FG without granulation part
